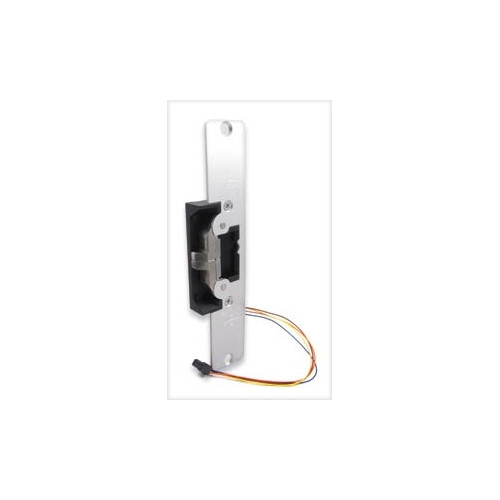

Adams Rite 7410-628 Ultra-Line Electric Strike for Wood Jambs

Adams Rite
$210.00


Adams Rite 7400 Series Electric Strike Installation Instructions

Description

7410 Electric Strike with 7-15/16” faceplate and 7411 Electric Strike with 10-1/4” faceplate are designed for Adams Rite deadlatches or cylindrical locksets with ½” to 5/8” latchbolt projection. For use in hollow metal, wood and aluminum door jambs. Opens electrically under 35 lbs. of preload.

Function

Replaces earlier 7510, 7810 electric strikes in either metal or wooden jambs for remote electrical control of any door equipped with an Adams Rite 4500, 4700, or 4900 Series (or similar) Deadlatch or cylindrical (key-in-knob/lever) type lockset with 1/2” to 5/8” latchbolt projection. Electrical actuation unlocks strike jaw, releasing latchbolt so door can be opened without operating latch itself. Extremely compact mechanism fits into jamb sections as shallow as 1-1/16”. Direct upgrade for Adams Rite 7110 Electric Strikes.

This non-handed strike features an ultra-compact design and an adjustable stainless steel split-jaw with over 1500 lbs. of holding force in fail-secure mode. The strike releases electrically with up to 35 lbs. of door “preload” (pressure exerted on doors by air conditioning systems, warping or misaligned hardware which can disable common electric strikes). Single solenoid operates on 12, 16, or 24 volt AC/DC power. Strikes are equipped with a quick connect plug-in type connector.

Specifications:

Fail-Safe/Fail-Secure: Field selectable at time of installation.

Case: Approximately 1” x 3-3/8” x 1-1/16” deep.

Strike Lip: Basic 7400 electric strike has lip of proper length for 1-3/4” thick door that closes flush with jamb edge. Where door thickness or jamb shape differs from this standard relationship, lip extension kits are available.

Strike Opening: 5/8” adjustable x 1-7/16” x 1/2” deep. Bolt retainer jaw is stainless steel. Strike accepts bolt of Adams Rite 4500, 4700 (discontinued), or 4900 Series Deadlatch or cylindrical latches.

Faceplate: 7410 faceplate measures 1-7/16” x 7-15/16”. 7411 faceplate measures 10-1/4”. Available in a wide range of architectural finishes.

Voltage: Field selectable to match power source of 12, 16, or 24 VAC/VDC.


Read more
Add to wishlist

Description


Adams Rite 7400 Series Electric Strike Installation Instructions

Description

7410 Electric Strike with 7-15/16” faceplate and 7411 Electric Strike with 10-1/4” faceplate are designed for Adams Rite deadlatches or cylindrical locksets with ½” to 5/8” latchbolt projection. For use in hollow metal, wood and aluminum door jambs. Opens electrically under 35 lbs. of preload.

Function

Replaces earlier 7510, 7810 electric strikes in either metal or wooden jambs for remote electrical control of any door equipped with an Adams Rite 4500, 4700, or 4900 Series (or similar) Deadlatch or cylindrical (key-in-knob/lever) type lockset with 1/2” to 5/8” latchbolt projection. Electrical actuation unlocks strike jaw, releasing latchbolt so door can be opened without operating latch itself. Extremely compact mechanism fits into jamb sections as shallow as 1-1/16”. Direct upgrade for Adams Rite 7110 Electric Strikes.

This non-handed strike features an ultra-compact design and an adjustable stainless steel split-jaw with over 1500 lbs. of holding force in fail-secure mode. The strike releases electrically with up to 35 lbs. of door “preload” (pressure exerted on doors by air conditioning systems, warping or misaligned hardware which can disable common electric strikes). Single solenoid operates on 12, 16, or 24 volt AC/DC power. Strikes are equipped with a quick connect plug-in type connector.

Specifications:

Fail-Safe/Fail-Secure: Field selectable at time of installation.

Case: Approximately 1” x 3-3/8” x 1-1/16” deep.

Strike Lip: Basic 7400 electric strike has lip of proper length for 1-3/4” thick door that closes flush with jamb edge. Where door thickness or jamb shape differs from this standard relationship, lip extension kits are available.

Strike Opening: 5/8” adjustable x 1-7/16” x 1/2” deep. Bolt retainer jaw is stainless steel. Strike accepts bolt of Adams Rite 4500, 4700 (discontinued), or 4900 Series Deadlatch or cylindrical latches.

Faceplate: 7410 faceplate measures 1-7/16” x 7-15/16”. 7411 faceplate measures 10-1/4”. Available in a wide range of architectural finishes.

Voltage: Field selectable to match power source of 12, 16, or 24 VAC/VDC.


Additional info

Width: 6.00
Height: 6.00
Depth: 6.00
