Cal-Royal 2200EO-36-ALUM Rim Panic Exit Device

Cal-Royal
$162.92
$137.54
(You save $25.38)


pdficon.pngTemplate

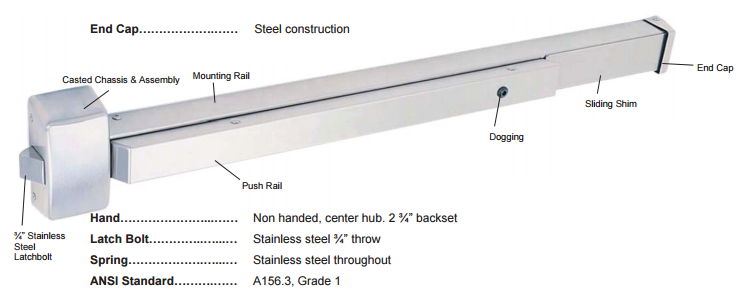

Specifications

  • For Doors 1 ¾” thick standard
  • Chassis: Nonferrous alloy (Panic Grade)
  • Cover: Nonferrous alloy. Covers stock hollow metal doors with 161 cutout
  • Mounting: Furnished standard with wood and machine screws.
  • End Cap: Steel construction
  • Hand: Non handed, center hub 2 ¾” backset
  • Door Size: 30” to 36” door width
  • Maximum Cut down: 6''
  • Latch Bolt: Stainless steel ¾” throw
  • Bar projection: Neutral 2-1/2", depressed 1-3/4"
  • Spring: Stainless steel throughout
  • ANSI Standard: A156.3, Grade 1
  • Rail Assembly: Heavy gauge steel, painted
  • Strike: 239 packed standard
  • Dogging Feature: Allen-type key furnished standard
  • UL and ULC Listed
  • Finish Available: Aluminum


Strike




Read more
Add to wishlist

Description


pdficon.pngTemplate

Specifications

  • For Doors 1 ¾” thick standard
  • Chassis: Nonferrous alloy (Panic Grade)
  • Cover: Nonferrous alloy. Covers stock hollow metal doors with 161 cutout
  • Mounting: Furnished standard with wood and machine screws.
  • End Cap: Steel construction
  • Hand: Non handed, center hub 2 ¾” backset
  • Door Size: 30” to 36” door width
  • Maximum Cut down: 6''
  • Latch Bolt: Stainless steel ¾” throw
  • Bar projection: Neutral 2-1/2", depressed 1-3/4"
  • Spring: Stainless steel throughout
  • ANSI Standard: A156.3, Grade 1
  • Rail Assembly: Heavy gauge steel, painted
  • Strike: 239 packed standard
  • Dogging Feature: Allen-type key furnished standard
  • UL and ULC Listed
  • Finish Available: Aluminum


Strike




Additional info

Width: 34.20
Height: 6.50
Depth: 6.50
