Kaba E-Plex E5200 Series E5267XSWL-626-41 Mortise 1-1/4" Face Plate w/ Deadbolt Electronic Lock

KABA
$1,106.00
$778.06
(You save $327.94)


pdficon.pngInstallation Instructions

The 5200 Series Electronic pushbutton lock eliminates problems and costs associated with issuing, controlling and collecting keys and cards. Provides exterior access by combination, while allowing free egress.

Features

  • No Wires: E-Plex’s LectroBolt eliminates running wires to or through the door— no risk of damage from pinched wires that can result in costly callbacks
  • Number of Codes: Multiple Users—3,000 Codes
  • Programming: Locks are programmed via E-Plex Enterprise Software (required; not included) —provides easy management of doors and users
  • Handing: Non-handed, pre-assembled for left-hand door installations—easily changed in the field
  • Scheduling: Access schedules—up to 16 different access schedules may be programmed into lock Holiday/Vacation—up to 32 different holiday/vacation blocks may be programmed into lock
  • Operation Modes: • PIN access • Passage—can be toggled on/off or can be pre-programmed to re-lock after a certain number of hours • Lockout
  • Authority Levels: Five different levels allow who has access to specific lock functions, including: Service Codes—programmed for one-time access or "come-and-go" access for 1 to 24 hours
  • User Parameters: Code length—adjustable to accept 4 to 8 digits Anti-tamper lockout—adjustable from 3 to 9 invalid attempts with an adjustable period of 0 to 90 seconds Re-lock time—adjustable from 2 to 20 seconds
  • Battery Operation: Batteries located in interior housing cover; offers quick and easy battery replacement for institutions (four AA Alkaline batteries provide up to 180,000 cycles; 400,000 cycles with high capacity battery pack). Lock data is maintained if batteries fail.
  • Ease of Installation: LectroBolt eliminates wiring to or through the door—no risk of pinched wires

Specifications

  • Construction: Extra heavy-duty Grade 1 lock; cylindrical lockset, solid cast housings; solid cast zinc levers, cylindrical drive wear tested for extensive use in indoor and outdoor applications
  • Numeric Keypad: Vandal resistant, solid metal pushbuttons
  • Handing: Non-handed, pre-assembled for left-hand door installation—easily changed in the field
  • Latch: ½" (13 mm) throw latch
  • Minimum Stile Required: 5" (127 mm)
  • Function: American Steel Mortise (ASM)
  • Locking Device: STD Mortise 1¼" (32 mm) face plate with deadbolt (non-handed)
  • Key Override: K-I-L Kaba Cylinder (Schlage "C" Keyway) included
  • Lever: Winston Lever
  • Finishes Available: 626 Satin Chrome


Read more
Add to wishlist

Description


pdficon.pngInstallation Instructions

The 5200 Series Electronic pushbutton lock eliminates problems and costs associated with issuing, controlling and collecting keys and cards. Provides exterior access by combination, while allowing free egress.

Features

  • No Wires: E-Plex’s LectroBolt eliminates running wires to or through the door— no risk of damage from pinched wires that can result in costly callbacks
  • Number of Codes: Multiple Users—3,000 Codes
  • Programming: Locks are programmed via E-Plex Enterprise Software (required; not included) —provides easy management of doors and users
  • Handing: Non-handed, pre-assembled for left-hand door installations—easily changed in the field
  • Scheduling: Access schedules—up to 16 different access schedules may be programmed into lock Holiday/Vacation—up to 32 different holiday/vacation blocks may be programmed into lock
  • Operation Modes: • PIN access • Passage—can be toggled on/off or can be pre-programmed to re-lock after a certain number of hours • Lockout
  • Authority Levels: Five different levels allow who has access to specific lock functions, including: Service Codes—programmed for one-time access or "come-and-go" access for 1 to 24 hours
  • User Parameters: Code length—adjustable to accept 4 to 8 digits Anti-tamper lockout—adjustable from 3 to 9 invalid attempts with an adjustable period of 0 to 90 seconds Re-lock time—adjustable from 2 to 20 seconds
  • Battery Operation: Batteries located in interior housing cover; offers quick and easy battery replacement for institutions (four AA Alkaline batteries provide up to 180,000 cycles; 400,000 cycles with high capacity battery pack). Lock data is maintained if batteries fail.
  • Ease of Installation: LectroBolt eliminates wiring to or through the door—no risk of pinched wires

Specifications

  • Construction: Extra heavy-duty Grade 1 lock; cylindrical lockset, solid cast housings; solid cast zinc levers, cylindrical drive wear tested for extensive use in indoor and outdoor applications
  • Numeric Keypad: Vandal resistant, solid metal pushbuttons
  • Handing: Non-handed, pre-assembled for left-hand door installation—easily changed in the field
  • Latch: ½" (13 mm) throw latch
  • Minimum Stile Required: 5" (127 mm)
  • Function: American Steel Mortise (ASM)
  • Locking Device: STD Mortise 1¼" (32 mm) face plate with deadbolt (non-handed)
  • Key Override: K-I-L Kaba Cylinder (Schlage "C" Keyway) included
  • Lever: Winston Lever
  • Finishes Available: 626 Satin Chrome


Additional info

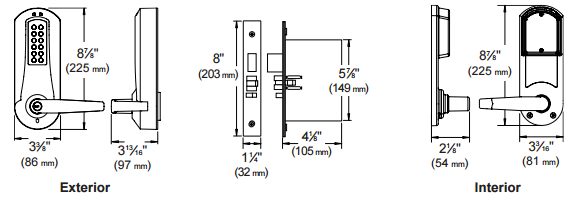

Width: 3.10
Height: 8.10
Depth: 2.50
