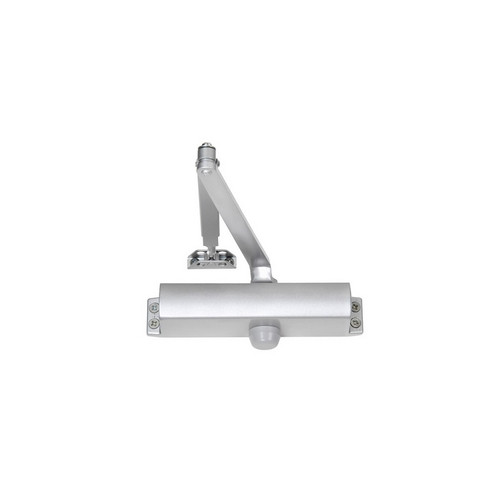

Norton 160 Series Door Closer

Norton
$75.60


pdficon.pngInstallation Instructions

The 160 Series door closer, is ideal for stocking distributors serving high volume aftermarket and storefront segments. The 160 features an adjustable spring, tri-packed, non-hold open arms and independent and separate latch, sweep and backcheck intensity valves. Featuring easy installation and maintenance and dependable control, the 160 is perfect for office doors, utility doors and strip mall applications.

Model Available: 161BF

Features

  • Adjustable spring size 1 through 4
  • Non-handed
  • Cast aluminum body
  • Rack-and-pinion design
  • Independent latch sweep and backcheck intensity valves
  • Non-hold open arms
  • Closer footprint: 3/4" x 9-1/16"
  • Closer projection: 2-5/8"

Compliance and Standards

  • ANSI/BHMA A156.4, Grade 1
  • UL / cUL listed for use on fire rated doors
  • UL10C listed for positive pressure fire test
  • Meets requirements for for Americans with Disabilities Act (ADA) and ANSI/BHMA A117.1
  • 5-year limited warranty
Available in 689 (aluminum) or 690 (dark bronze) finishes

689
Aluminum

690
Statuary Bronze
