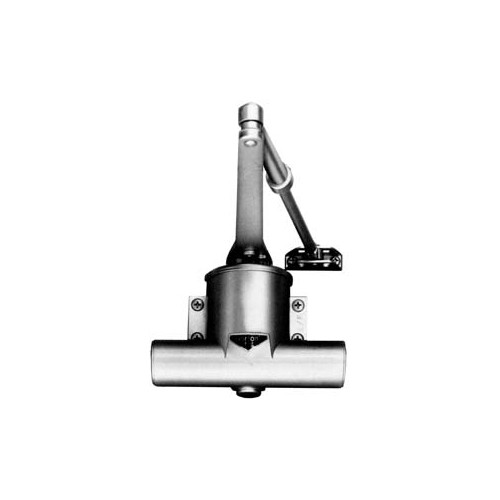

Norton 78-B/F Series Potbelly Surface Closers

KABA
$984.20


pdficon.png78-B/FHA; Regular or Parallel Arm, Hold Open

the Norton® Series 78-B/F Potbelly Surface Closers represent a combination of traditional styling and modern closer features. All closer sizes are contained within a single size aluminum alloy shell. Templates for installing this closer are the same for all closer sizes.

In addition only two springs are needed to accommodate the complete range of door sizes. One clock spring is adjustable to meet the closing force requirements for closer sizes 2, 3, and 4. One other larger spring can be adjusted to meet the closing force for closer sizes 5 and 6. Both springs are powerful enough to provide an additional 50% power increase over the minimum closing force for the largest size in their range; i.e. 50% over size 4 and 50% over size 6.

These Norton Traditional Surface Closers have an unusual ability to accommodate power adjustment to their environment. The adjustable clock coil spring provides a small incremental increase or decrease through a wide range of closer power. They can be adjusted to meet the exact power requirements of the installation. Sweep speed, latch speed and backcheck cushioning can also be adjusted to door, frame and variable conditions.

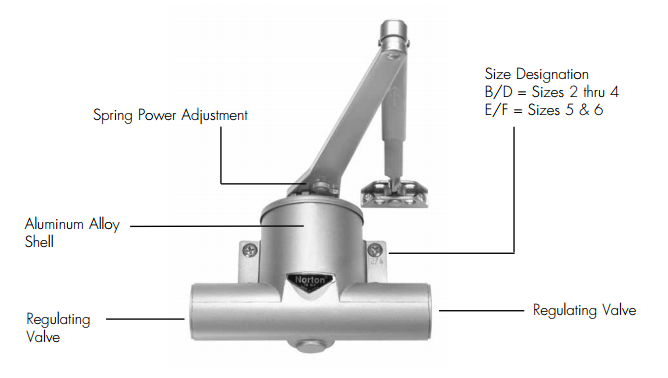

Features

  • Aluminum alloy shell
  • Adjustable spring power: B/D = spring size 2-4; E/F = spring sizes 5 and 6
  • Rack and pinion operation
  • Adjustable sweep/latch speed
  • Adjustable backcheck cushioning
  • Non-hold open arm standard
  • Field reversible
  • Self drilling, self tapping and machine screws standard

Specifications

Closer for interior (and) exterior doors shall be rack-and-pinion type enclosed in a cast aluminum alloy shell. Closer spring shall be clock-type coil spring and shall be adjustable through a wide range of closing power. Closer shall be equipped with a single hex-key operated regulating valve for control of both closing and latch speeds. Closer shall have a hex-key operated regulating valve to control the adjustable backcheck feature. Closer shall be Norton® Series 78-B/F Traditional Surface Closer or equivalent.

Compliance Standard

  • ANSI/BHMA A156.4, Grade 3
  • UL / cUL listed for use on fire rated doors
  • UL10C listed for positive pressure fire test
  • This product is manufactured in an ISO 9001 facility
  • Listed by the New York City Materials and Equipment Acceptance Division

Available Finish: Dull Chrome
