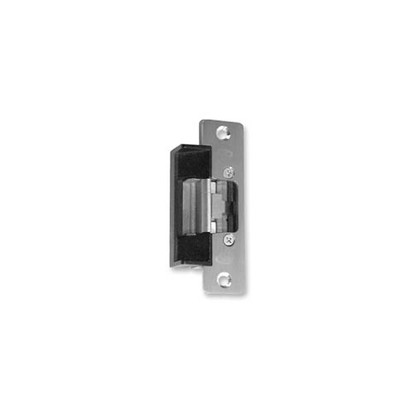

RCI L6504-32D ANSI Round Corner Centerline Latch Entry Electric Strike for Alum Frames

Installation Instructions

Trim Plate Installation Instructions

L6504 For ANSI Round Corner Centerline Latch Entry (3/4" Latch Projection & 5/8" Low Profile)

RCI's "all-in-one" 6 Series electric strike combines several requested key features. Standard features include a multi-voltage single solenoid, selectable lock mode (no tools necessary), horizontal adjustment, and plug-in wire connectors.

The L65 Low Profile version accepts 1/2" or 5/8" latch projection (perfect for narrow stile aluminum frames).

Applications

• Commercial Centers
• Industrial Buildings
• Educational Facilities
• Retail Outlets
• Health Care Facilities
• Office Complex

Standard Features

• Field selectable lock mode - choose fail locked or fail unlocked with the turn of a dial (Fail unlocked mode requires DC voltage)
• Field selectable voltage input - accommodates 12 or 24VDC and 12 to 24VAC (even 16VAC) in one strike
• UL Listed for 1500 lbs static strength
• 1/4" Horizontal Adjustment
• Modular "plug-in" wire connectors for fast hook-up
• Modular faceplate designs for a variety of frame types and cut outs
• 1-3/16" (S), 1-1/16" (L) frame depth
• Stainless steel faceplate
• Non-Handed
• Trim Plate Included

Specifications

• Type: Low Profile
• Latch Projection: 1/2" or 5/8''
• For Aluminum Frames
• Dimensions: 1-1/4"W x 4-7/8"H
• Mode: Field Selectable FL / FUL *
• Voltage: 12 to 24VAC & 12 or 24VDC
• Finish Available: 32D Brushed Stainless Steel

*Fail Locked = Fail Secure = FL
*Fail Unlocked = Fail Safe = FUL
