On Sale

Securitron DK-12 Digital Keypad System w/ Illuminated Keys - Single Gang

Securitron $138.26 $181.00 ((You save $42.74))


pdficon.pngInstallation Instructions

The DK-12 is a one piece unit designed for lower security requirements..

Features

  • Stainless steel backplate with 12 illuminated keys (10 digits + "*" and "#" keys)
  • One piece digital keypad specifically designed for control of electric locks
  • Easy to install with simple hand tools
  • Operates on low voltage AC or DC current
  • Audible keystroke echo
  • Single gang, stainless steel plate with plastic backbox
  • 99 user code capability which is programmable from the keypad
  • Passage mode and Lockout mode
  • 5 Amp SPDT timed, control relay output
  • Red and Green LEDs are visible indicators
  • Yellow LED provides programming prompt
  • True 10 digit operation
  • Request to Exit (REX) input
  • MagnaCare® lifetime replacement, no fault warranty

Specifications

  • Current Draw and Voltage: 70mA, 12 or 24VDC
  • Operating Temperature: -10 to +140F [-23 to +60C]
  • Maximum 30VDC or 300VAC switched voltage
  • Shipping Weight: 1 lb.


Read more
Add to wishlist

Description


pdficon.pngInstallation Instructions

The DK-12 is a one piece unit designed for lower security requirements..

Features

  • Stainless steel backplate with 12 illuminated keys (10 digits + "*" and "#" keys)
  • One piece digital keypad specifically designed for control of electric locks
  • Easy to install with simple hand tools
  • Operates on low voltage AC or DC current
  • Audible keystroke echo
  • Single gang, stainless steel plate with plastic backbox
  • 99 user code capability which is programmable from the keypad
  • Passage mode and Lockout mode
  • 5 Amp SPDT timed, control relay output
  • Red and Green LEDs are visible indicators
  • Yellow LED provides programming prompt
  • True 10 digit operation
  • Request to Exit (REX) input
  • MagnaCare® lifetime replacement, no fault warranty

Specifications

  • Current Draw and Voltage: 70mA, 12 or 24VDC
  • Operating Temperature: -10 to +140F [-23 to +60C]
  • Maximum 30VDC or 300VAC switched voltage
  • Shipping Weight: 1 lb.

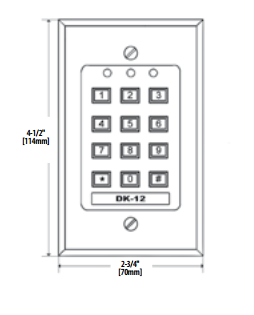

Additional info

Width: 2.50
Height: 4.50
Depth: 1.00
