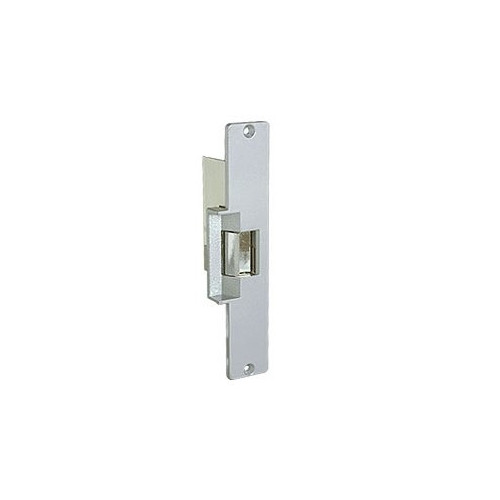

Trine 002 Light Commercial Electric Strike

Trine
$57.40


pdficon.pngDimensions

00 Series Features:

  • Durability - 500,000 Life Cycles
  • Holding Force - 1000 lbs
  • Only 1 Moving Part in Locking Mechanism
  • Non Handed Operation
  • Heavy Duty Latch Spring
  • Fail Secure-Standard Action (Unlocks with Power)

00 Series Electrical Characteristics:

VoltageAmpsOhms (?)DutySoundWire Color
8-16VAC/4-6VDC 1.3-2.7 1.4 Intermittent Buzz Black
12DC 0.40 30.0 Continuous Silent Red/White
24AC 1.40 4.7 Intermittent Buzz Red
24DC 0.19 125.0 Continuous Silent Black/White

002 Specifications
For use in new or replacement installations in wood and metal jambs Auxiliary lever ramps, or use with locksets which contain dead locking levers. Use with locksets having up to 5/8” throw, based on 1/8” door gap.

Face Plate 7-15/16” x 1-7/16” -- Auxiliary Ramp 2-7/8” -- Mortise Backset 1-9/16” -- Cavity Depth 1/2” -- Cavity Width 9/16” -- Cavity Height 1-1/2”

Read more
Add to wishlist

Description


pdficon.pngDimensions

00 Series Features:

  • Durability - 500,000 Life Cycles
  • Holding Force - 1000 lbs
  • Only 1 Moving Part in Locking Mechanism
  • Non Handed Operation
  • Heavy Duty Latch Spring
  • Fail Secure-Standard Action (Unlocks with Power)

00 Series Electrical Characteristics:

VoltageAmpsOhms (?)DutySoundWire Color
8-16VAC/4-6VDC 1.3-2.7 1.4 Intermittent Buzz Black
12DC 0.40 30.0 Continuous Silent Red/White
24AC 1.40 4.7 Intermittent Buzz Red
24DC 0.19 125.0 Continuous Silent Black/White

002 Specifications
For use in new or replacement installations in wood and metal jambs Auxiliary lever ramps, or use with locksets which contain dead locking levers. Use with locksets having up to 5/8” throw, based on 1/8” door gap.

Face Plate 7-15/16” x 1-7/16” -- Auxiliary Ramp 2-7/8” -- Mortise Backset 1-9/16” -- Cavity Depth 1/2” -- Cavity Width 9/16” -- Cavity Height 1-1/2”

Additional info

Width: 8.00
Height: 6.00
Depth: 6.00
