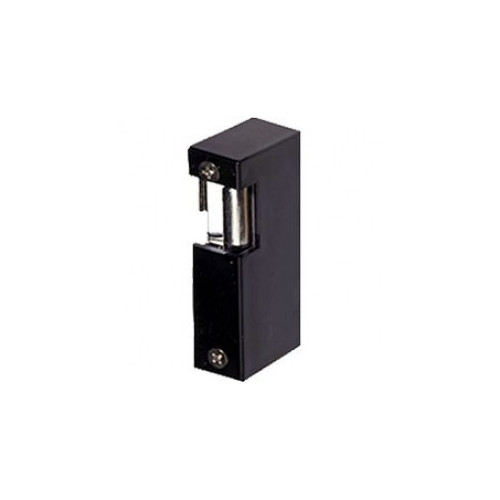

Trine 003 Light Commercial Electric Strike

Trine
$87.00


pdficon.pngDimensions

00 Series Features:

  • Durability - 500,000 Life Cycles
  • Holding Force - 1000 lbs
  • Only 1 Moving Part in Locking Mechanism
  • Non Handed Operation
  • Heavy Duty Latch Spring
  • Fail Secure-Standard Action (Unlocks with Power)

00 Series Electrical Characteristics:

VoltageAmpsOhms (Ω)DutySoundWire Color
8-16VAC/4-6VDC 1.3-2.7 1.4 Intermittent Buzz Black
12DC 0.40 30.0 Continuous Silent Red/White
24AC 1.40 4.7 Intermittent Buzz Red
24DC 0.19 125.0 Continuous Silent Black/White

003 Specifications
For surface mount installations, on wood or metal jambs, for in swinging applications with surface mount. Use with locksets and night latches having up to 5/8” throw, based on 1/8”door gap. When mounted on a pair of doors, strike is mounted to the inactive leaf.

Surface Mount -- Case 4-11/16” x 1-1/4” -- Cavity Depth 1/2” -- Cavity Width 9/16” -- Cavity Height 1-1/2”



Read more
Add to wishlist

Description


pdficon.pngDimensions

00 Series Features:

  • Durability - 500,000 Life Cycles
  • Holding Force - 1000 lbs
  • Only 1 Moving Part in Locking Mechanism
  • Non Handed Operation
  • Heavy Duty Latch Spring
  • Fail Secure-Standard Action (Unlocks with Power)

00 Series Electrical Characteristics:

VoltageAmpsOhms (Ω)DutySoundWire Color
8-16VAC/4-6VDC 1.3-2.7 1.4 Intermittent Buzz Black
12DC 0.40 30.0 Continuous Silent Red/White
24AC 1.40 4.7 Intermittent Buzz Red
24DC 0.19 125.0 Continuous Silent Black/White

003 Specifications
For surface mount installations, on wood or metal jambs, for in swinging applications with surface mount. Use with locksets and night latches having up to 5/8” throw, based on 1/8”door gap. When mounted on a pair of doors, strike is mounted to the inactive leaf.

Surface Mount -- Case 4-11/16” x 1-1/4” -- Cavity Depth 1/2” -- Cavity Width 9/16” -- Cavity Height 1-1/2”



Additional info

Width: 8.00
Height: 6.00
Depth: 6.00
