Dimensions
Trine 002 Light Commercial Electric Strike
$57.40

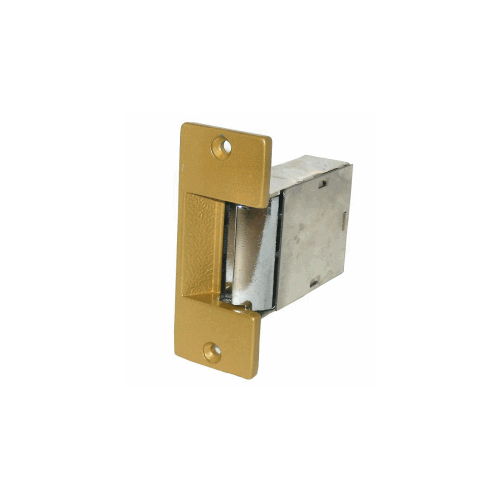

Trine 005 Light Commercial Electric Strike
$46.20
00 Series Features
- Durability - 500,000 Life Cycles
- Holding Force - 1000 lbs
- Only 1 Moving Part in Locking Mechanism
- Non Handed Operation
- Heavy Duty Latch Spring
- Fail Secure-Standard Action (Unlocks with Power)
00 Series Electrical Characteristics
| Voltage | Amps | Ohms (?) | Duty | Sound | Wire Color |
|---|---|---|---|---|---|
| 8-16VAC/4-6VDC | 1.3-2.7 | 1.4 | Intermittent | Buzz | Black |
| 12DC | 0.40 | 30.0 | Continuous | Silent | Red/White |
| 24AC | 1.40 | 4.7 | Intermittent | Buzz | Red |
| 24DC | 0.19 | 125.0 | Continuous | Silent | Black/White |
005 Specifications
For use in replacement installations in wood jambs and iron gates. Use with bored cylindrical locksets having up to 5/8” throw, based on 1/8” door gap.
Face Plate 3-1/2” x 1-3/8” -- Mortise Backset 2-3/4” -- Cavity Depth 1/2” -- Cavity Width 9/16” -- Cavity Height 1-1/2”
Description
00 Series Features
- Durability - 500,000 Life Cycles
- Holding Force - 1000 lbs
- Only 1 Moving Part in Locking Mechanism
- Non Handed Operation
- Heavy Duty Latch Spring
- Fail Secure-Standard Action (Unlocks with Power)
00 Series Electrical Characteristics
| Voltage | Amps | Ohms (?) | Duty | Sound | Wire Color |
|---|---|---|---|---|---|
| 8-16VAC/4-6VDC | 1.3-2.7 | 1.4 | Intermittent | Buzz | Black |
| 12DC | 0.40 | 30.0 | Continuous | Silent | Red/White |
| 24AC | 1.40 | 4.7 | Intermittent | Buzz | Red |
| 24DC | 0.19 | 125.0 | Continuous | Silent | Black/White |
005 Specifications
For use in replacement installations in wood jambs and iron gates. Use with bored cylindrical locksets having up to 5/8” throw, based on 1/8” door gap.
Face Plate 3-1/2” x 1-3/8” -- Mortise Backset 2-3/4” -- Cavity Depth 1/2” -- Cavity Width 9/16” -- Cavity Height 1-1/2”
Additional info
Width:
8.00
Height:
6.00
Depth:
6.00
