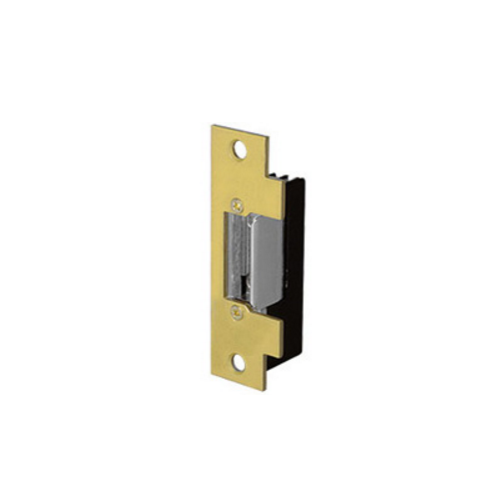

Trine 2007 Adjustable Electric Strike

Trine
$101.70


pdficon.pngDimensions

Features

  • Allows adjustment for wider latch bolts & poorly aligned doors & locksets.
  • 1/8” Horizontal Latch Adjustment.
  • Releases Under Slight Door Pre-Load.
  • 500,000 Life Cycles -- Holding Force - 900 lbs.
  • Solid Cast Latch - Chrome Plated.
  • Non Handed Operation.
  • Screw Terminals - Quick Connection.

2007 Specifications

For use in new or replacement installations in metal jambs. Fits a standard 4-7/8” ANSI prep with little jamb modification. Use with locksets having up to 5/8” throw, based on 1/8” door gap.

Steel Face Plate 4-7/8” x 1-1/4” -- Narrow Style Face Plate -- Mortise Backset 1-9/16” -- Cavity Depth 9/16” -- Cavity Width 5/8” -- Cavity Height 1-11/16””

2000 Series Electrical Characteristics:

VoltageCurrent/AmpsOhms (Ω)SoundDuty
6-14VAC 0.44 - 1.10 8.5 Buzz Intermittent
6-14VDC 0.70 - 1.60 8.5 Silent Continuous
16-24VAC 0.22 - 0.33 50.0 Buzz Intermittent
16-24VDC 0.32 - 0.47 50.0 Silent Continuous
12VDC 0.20 - 0.33 60.0 Silent Continuous
24VDC 0.11 - 0.47 120.0 Silent Continuous

Adjustable Latch


Read more
Add to wishlist

Description


pdficon.pngDimensions

Features

  • Allows adjustment for wider latch bolts & poorly aligned doors & locksets.
  • 1/8” Horizontal Latch Adjustment.
  • Releases Under Slight Door Pre-Load.
  • 500,000 Life Cycles -- Holding Force - 900 lbs.
  • Solid Cast Latch - Chrome Plated.
  • Non Handed Operation.
  • Screw Terminals - Quick Connection.

2007 Specifications

For use in new or replacement installations in metal jambs. Fits a standard 4-7/8” ANSI prep with little jamb modification. Use with locksets having up to 5/8” throw, based on 1/8” door gap.

Steel Face Plate 4-7/8” x 1-1/4” -- Narrow Style Face Plate -- Mortise Backset 1-9/16” -- Cavity Depth 9/16” -- Cavity Width 5/8” -- Cavity Height 1-11/16””

2000 Series Electrical Characteristics:

VoltageCurrent/AmpsOhms (Ω)SoundDuty
6-14VAC 0.44 - 1.10 8.5 Buzz Intermittent
6-14VDC 0.70 - 1.60 8.5 Silent Continuous
16-24VAC 0.22 - 0.33 50.0 Buzz Intermittent
16-24VDC 0.32 - 0.47 50.0 Silent Continuous
12VDC 0.20 - 0.33 60.0 Silent Continuous
24VDC 0.11 - 0.47 120.0 Silent Continuous

Adjustable Latch


Additional info

Width: 8.00
Height: 6.00
Depth: 6.00
