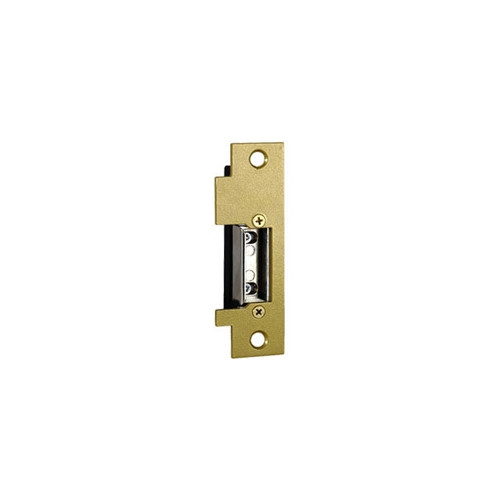

Trine 2009 Adjustable Electric Strike
$82.60
2000 Series Features:
- Allows adjustment for wider latch bolts & poorly aligned doors & locksets.
- 1/8” Horizontal Latch Adjustment.
- Releases Under Slight Door Pre-Load.
- 500,000 Life Cycles -- Holding Force - 900 lbs.
- Solid Cast Latch - Chrome Plated.
- Non Handed Operation.
- Screw Terminals - Quick Connection.
2000 Series Electrical Characteristics:
| Voltage | Current/Amps | Ohms (?) | Sound | Duty |
|---|---|---|---|---|
| 6-14VAC | 0.44 - 1.10 | 8.5 | Buzz | Intermittent |
| 6-14VDC | 0.70 - 1.60 | 8.5 | Silent | Continuous |
| 16-24VAC | 0.22 - 0.33 | 50.0 | Buzz | Intermittent |
| 16-24VDC | 0.32 - 0.47 | 50.0 | Silent | Continuous |
| 12VDC | 0.20 - 0.33 | 60.0 | Silent | Continuous |
| 24VDC | 0.11 - 0.47 | 120.0 | Silent | Continuous |
2009 Specifications
For use in new or replacement installations in metal jambs. Centerline of the latch is 3/8” below ANSI centerline for offset applications. Fits a standard 4-7/8” ANSI prep with little jamb modification. Use with locksets having up to 5/8” throw, based on 1/8” door gap.
Steel Face Plate 4-7/8” x 1-1/4” -- Narrow Style Face Plate -- Mortise Backset 1-9/16” -- Cavity Depth 9/16” -- Cavity Width 5/8” -- Cavity Height 1-11/16”
Adjustable Latch
Description
2000 Series Features:
- Allows adjustment for wider latch bolts & poorly aligned doors & locksets.
- 1/8” Horizontal Latch Adjustment.
- Releases Under Slight Door Pre-Load.
- 500,000 Life Cycles -- Holding Force - 900 lbs.
- Solid Cast Latch - Chrome Plated.
- Non Handed Operation.
- Screw Terminals - Quick Connection.
2000 Series Electrical Characteristics:
| Voltage | Current/Amps | Ohms (?) | Sound | Duty |
|---|---|---|---|---|
| 6-14VAC | 0.44 - 1.10 | 8.5 | Buzz | Intermittent |
| 6-14VDC | 0.70 - 1.60 | 8.5 | Silent | Continuous |
| 16-24VAC | 0.22 - 0.33 | 50.0 | Buzz | Intermittent |
| 16-24VDC | 0.32 - 0.47 | 50.0 | Silent | Continuous |
| 12VDC | 0.20 - 0.33 | 60.0 | Silent | Continuous |
| 24VDC | 0.11 - 0.47 | 120.0 | Silent | Continuous |
2009 Specifications
For use in new or replacement installations in metal jambs. Centerline of the latch is 3/8” below ANSI centerline for offset applications. Fits a standard 4-7/8” ANSI prep with little jamb modification. Use with locksets having up to 5/8” throw, based on 1/8” door gap.
Steel Face Plate 4-7/8” x 1-1/4” -- Narrow Style Face Plate -- Mortise Backset 1-9/16” -- Cavity Depth 9/16” -- Cavity Width 5/8” -- Cavity Height 1-11/16”
Adjustable Latch
Additional info
Width:
8.00
Height:
6.00
Depth:
6.00
