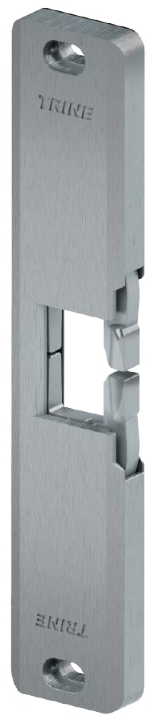

Trine 4800F Fire Rated Surface Mounted Rim Strike

Trine $336.98 $479.00 ((You save $142.02))


pdficon.pngInstallation Instructions

FIRE RATED FOR FREE

3 Hour fire rated electric strike for use with surface mounted rim exit devices with 3/4" (or greater) throw. For use in new or replacement installations in wood or metal single door frames

Features

  • For the less than the competitions non-fire rated electric strike, use the Fire Rated 4800F on all your installations. Feel secure in your installs and your specs and take the risk out of needing to install a fire rated electric strike later. For a lower price, why wouldn't you put in a fire rated electric strike?
  • The cavity is completely open -- which means the 4800F allows for a full 3/4" depth and upto a 1" throw -- competitor backplates do not allow for this versatility.
  • Built-in electronics automatically allow 11 thru 28 AC & DC Voltage input -- with surge and kickback protection
  • Comes with Trines: Our Patented 4-pin Anchoring System
  • Contains a one piece locking mechanism with one Solenoid -- less parts mean less problems.
  • Fail-safe/Fail-secure - field selectable (Like all electric strikes, it is not fire rated in Fail safe mode).
  • BHMA Grade 1 Electric Strike -- 1,500,000+ Life cycles -- 3,000+ lbs. Holding Force
  • Comes with Trines: Our Patented 4-pin Anchoring System
  • No cutting or worrying about voltage means you are always prepared.
  • Available Finish: Satin Stainless Steel

4800F Electrical Characteristics: "Just Plug and Play"

VoltagePull In/Holding
Current/Amps
DutySound
12DC 0.566/0.217 Intm./Cont. Silent
24DC 0.253/0.099 Intm./Cont. Silent
12AC 0.509/0.181 Intm./Cont. Silent
16AC 0.405/0.149 Intm./Cont. Silent
24AC 0.215/0.087 Intm./Cont. Silent

Patented Anchoring System Features:

  • Prevents strike from shifting on the frame for the most secure installations.
  • Use the included spacer plate as a guide when mounting the Patented Anchoring System.
  • Trines Patented Anchoring System is not required for installation but is recommended.





Read more
