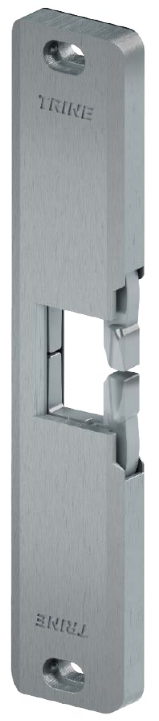

Trine 4850 Surface Mounted Rim Strike

Specifications

• For use with surface mounted rim exit devices with up to a 1” throw.
• No cutting of the frame
• Cavity is completely open -- which means the 4850 allows for an incremental depth up to a 1” throw - Competitor back plates do not allow for this versatility.
• Built-in electronics automatically allow 12 through 24 DC Voltage input -- with surge and kickback protection
• Comes with Trines Patented 6-Pin Anchoring System for strength and stability.
• Contains a one piece locking mechanism with one Solenoid -- less parts mean less problems.
• Fail-safe/Fail-secure field selectable.
• BHMA Grade 1 Electric Strike: 1,000,000+ Life cycles 1,500+ lbs. Holding Force.
• Comes with Trines, ur Patented 6-Pin Anchoring System
• Finish: Satin Stainless Steel For a fire rated rim panic strike use the 4800F


4850 Electrical Characteristics: "DC Plug and Play"

Includes

2 Spacers, 4 Thicknesses created, 1 Box solution provided.

Patented Anchoring System Features:

• Prevents strike from shifting on the frame for the most secure installations.
• Use the included spacer plate as a guide when mounting the Patented Anchoring System.
• Center pins on the 4850 are recommended for high traffic areas..
• Trines Patented Anchoring System is not required for installation but is recommended.
