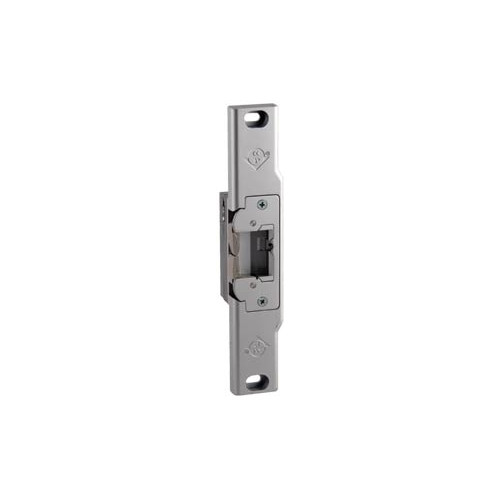

Adams Rite 74R2-130 UltraLine Electric Strike for Narrow Stile Rim Exit Devices w/ 1/2" Bolt

Adams Rite
$327.00
$225.47
(You save $101.53)


pdficon.pngInstallation Instructions and Dimensions

74R2 Electric Strike is designed for narrow stile rim exit devices with 1/2" Pullman type latchbolt. For use in aluminum door jambs. Opens electrically under 35lbs. of preload.

Function

A semi-mortised strike for rim exit devices having 1/2" Pullman type bolts. Provides electrical remote control, allowing door to open without actuation of the exit device. This non-handed strike features an ultra-compact design and a stainless steel split-jaw with over 1500 lbs. of holding force in fail-secure mode. The strike releases electrically with up to 35 lbs. of door “preload" (pressure exerted on doors by air conditioning systems, warping or misaligned hardware which can disable common electric strikes). Single solenoid operates on 12, 16, or 24 volt AC/DC power. Strikes are equipped with a quick connect plug-in type connector.

Specifications

  • FAIL-SAFE/FAIL-SECURE: Field selectable at time of installation.
  • CASE: Approximately 1" x 3-3/8" x 1-1/8" deep.
  • STRIKE OPENING: Bolt retainer jaw is stainless steel, measures 5/8" x 1-7/16" x 1/2" deep.
  • MOUNTING PLATE/HOUSING: Made of zinc aluminum alloy and measure 1-5/8" x 9" x 1/2" deep. Standard finish in epoxy to match Clear, Dark Bronze Anodized and Black Anodized finishes.
  • VOLTAGE: Field selectable to match power source of 12, 16, or 24 VAC/VDC.
  • STANDARD PACKAGE: Individually boxed with mounting plate shims, mounting screws, and installation instructions.
  • Shipping weight approximately 2 lbs
  • Finish: Clear anodized
Read more
Add to wishlist

Description


pdficon.pngInstallation Instructions and Dimensions

74R2 Electric Strike is designed for narrow stile rim exit devices with 1/2" Pullman type latchbolt. For use in aluminum door jambs. Opens electrically under 35lbs. of preload.

Function

A semi-mortised strike for rim exit devices having 1/2" Pullman type bolts. Provides electrical remote control, allowing door to open without actuation of the exit device. This non-handed strike features an ultra-compact design and a stainless steel split-jaw with over 1500 lbs. of holding force in fail-secure mode. The strike releases electrically with up to 35 lbs. of door “preload" (pressure exerted on doors by air conditioning systems, warping or misaligned hardware which can disable common electric strikes). Single solenoid operates on 12, 16, or 24 volt AC/DC power. Strikes are equipped with a quick connect plug-in type connector.

Specifications

  • FAIL-SAFE/FAIL-SECURE: Field selectable at time of installation.
  • CASE: Approximately 1" x 3-3/8" x 1-1/8" deep.
  • STRIKE OPENING: Bolt retainer jaw is stainless steel, measures 5/8" x 1-7/16" x 1/2" deep.
  • MOUNTING PLATE/HOUSING: Made of zinc aluminum alloy and measure 1-5/8" x 9" x 1/2" deep. Standard finish in epoxy to match Clear, Dark Bronze Anodized and Black Anodized finishes.
  • VOLTAGE: Field selectable to match power source of 12, 16, or 24 VAC/VDC.
  • STANDARD PACKAGE: Individually boxed with mounting plate shims, mounting screws, and installation instructions.
  • Shipping weight approximately 2 lbs
  • Finish: Clear anodized

Additional info

Width: 1.50
Height: 9.00
Depth: 1.00
