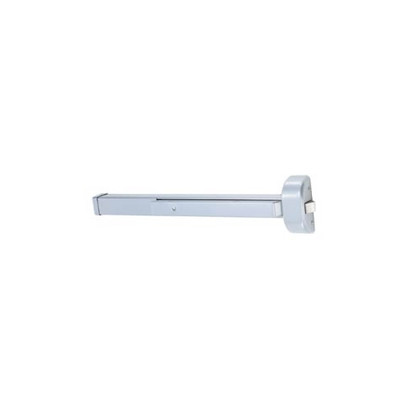

Arrow S1250 Rim Exit Device

Arrow
$198.70 - $220.90


S1150 Series/S1250 Series Cutsheet

General Specifications:

Chassis & Cover: Non-ferrous alloy

End caps: Metal

Doors:

  • 1-3/4" (44.45 mm) thick wood or hollow metal
  • 4-1/2" (114.3 mm) minimum stile
  • 4-5/8'' for fire-labeled devices

Latchbolt: 3/4" throw, stainless steel

Handling: Reversible

Dogging: Allen-type key standard, cylinder available.

Lenght: 36'' and 48''

Throughbolts: Order separately

Rail Assembly: Steel

Finishes Available: Aluminum

Certification & Compliance:

  • ANSI/BHMA A156.3, Grade
  • ANSI A117.1 Accessibility Code
  • Underwriters Laboratories (UL and CUL) listed for accident hazard (panic) standard.
  • Fire Exit hardware for hollow metal doors, UL and CUL listed for 3 hour, A label and lesser doors, Prefix “F” before part number.
  • Fire Exit hardware for wood doors, listed up to 1-1/2 hour, B label doors.
  • All exit devices comply with life safety code NFPA 101.
  • All fire rated devices comply with fire door and window code NFPA80.



Read more
Add to wishlist

Description


S1150 Series/S1250 Series Cutsheet

General Specifications:

Chassis & Cover: Non-ferrous alloy

End caps: Metal

Doors:

  • 1-3/4" (44.45 mm) thick wood or hollow metal
  • 4-1/2" (114.3 mm) minimum stile
  • 4-5/8'' for fire-labeled devices

Latchbolt: 3/4" throw, stainless steel

Handling: Reversible

Dogging: Allen-type key standard, cylinder available.

Lenght: 36'' and 48''

Throughbolts: Order separately

Rail Assembly: Steel

Finishes Available: Aluminum

Certification & Compliance:

  • ANSI/BHMA A156.3, Grade
  • ANSI A117.1 Accessibility Code
  • Underwriters Laboratories (UL and CUL) listed for accident hazard (panic) standard.
  • Fire Exit hardware for hollow metal doors, UL and CUL listed for 3 hour, A label and lesser doors, Prefix “F” before part number.
  • Fire Exit hardware for wood doors, listed up to 1-1/2 hour, B label doors.
  • All exit devices comply with life safety code NFPA 101.
  • All fire rated devices comply with fire door and window code NFPA80.



Additional info

Width: 40.00
Height: 6.00
Depth: 6.00
