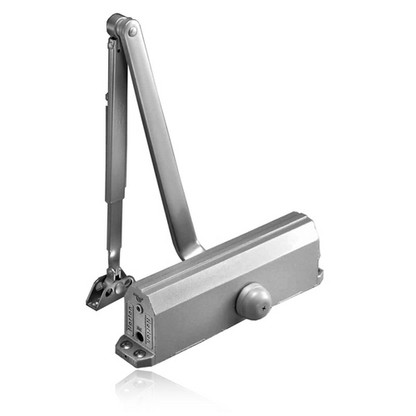

Norton 1601 Series Door Closers

Norton
$96.60


pdficon.pngInstallation Instructions

The 1601 Series Door Closers are designed to fit almost any application and are the choice of engineers worldwide. Ideal for use with aluminum storefront doors and frames, these closers have a history of proven quality and tradition.

Features

  • Adjustable spring sizes 3-6
  • Exceeds 12 million cycles (witnessed and verified by UL)
  • Non-handed
  • Rack and pinion design
  • Cast aluminum body
  • 2-7/8" (73mm) projection
  • 1-3/8" (35mm) diameter piston
  • 5/8" (16mm) diameter pinion journals
  • Standard, separate and independent, latch, sweep and backcheck intensity valves
  • Tri-Style® packaging (regular arm, top jamb and parallel arm mounting)
  • All standard arm applications allow doors to swing 180°, conditions permitting
  • Staked valves

Typical Applications

Recommended on interior or exterior doors including:

  • Aluminum Storefronts
  • Office Doors
  • Utility Closets
  • Storage Rooms

Certifications

  • ANSI/BHMA A156.4, Grade 1 certified
  • UL listed
  • UL10c compliant for positive pressure
  • 15-year limited warranty
Read more

Description


pdficon.pngInstallation Instructions

The 1601 Series Door Closers are designed to fit almost any application and are the choice of engineers worldwide. Ideal for use with aluminum storefront doors and frames, these closers have a history of proven quality and tradition.

Features

  • Adjustable spring sizes 3-6
  • Exceeds 12 million cycles (witnessed and verified by UL)
  • Non-handed
  • Rack and pinion design
  • Cast aluminum body
  • 2-7/8" (73mm) projection
  • 1-3/8" (35mm) diameter piston
  • 5/8" (16mm) diameter pinion journals
  • Standard, separate and independent, latch, sweep and backcheck intensity valves
  • Tri-Style® packaging (regular arm, top jamb and parallel arm mounting)
  • All standard arm applications allow doors to swing 180°, conditions permitting
  • Staked valves

Typical Applications

Recommended on interior or exterior doors including:

  • Aluminum Storefronts
  • Office Doors
  • Utility Closets
  • Storage Rooms

Certifications

  • ANSI/BHMA A156.4, Grade 1 certified
  • UL listed
  • UL10c compliant for positive pressure
  • 15-year limited warranty
