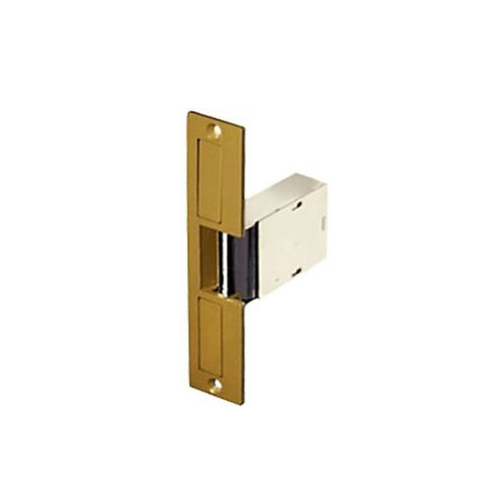

Trine 004 Light Commercial Electric Strikes

Trine
$68.60


pdficon.pngDimensions

00 Series Features

  • Durability - 500,000 Life Cycles
  • Holding Force - 1000 lbs
  • Only 1 Moving Part in Locking Mechanism
  • Non Handed Operation
  • Heavy Duty Latch Spring
  • Fail Secure-Standard Action (Unlocks with Power)

00 Series Electrical Characteristics

VoltageAmpsOhms (?)DutySoundWire Color
8-16VAC/4-6VDC 1.3-2.7 1.4 Intermittent Buzz Black
12DC 0.40 30.0 Continuous Silent Red/White
24AC 1.40 4.7 Intermittent Buzz Red
24DC 0.19 125.0 Continuous Silent Black/White

004 Specifications
For new or replacement installations in wood jambs. Use with locksets with individual deadbolts. Dead bolts cannot be released electrically. Use with locksets having up to 5/8” throw, based on 1/8” door gap.
Face Plate 6-1/4” x 1-3/8” -- Deadbolt Knockouts Top & Bottom 1-11/16” x 9/16” -- Mortise Backset 2-3/4” -- Cavity Depth 1/2” -- Cavity Width 9/16” -- Cavity Height 1-1/2”



Read more
Add to wishlist

Description


pdficon.pngDimensions

00 Series Features

  • Durability - 500,000 Life Cycles
  • Holding Force - 1000 lbs
  • Only 1 Moving Part in Locking Mechanism
  • Non Handed Operation
  • Heavy Duty Latch Spring
  • Fail Secure-Standard Action (Unlocks with Power)

00 Series Electrical Characteristics

VoltageAmpsOhms (?)DutySoundWire Color
8-16VAC/4-6VDC 1.3-2.7 1.4 Intermittent Buzz Black
12DC 0.40 30.0 Continuous Silent Red/White
24AC 1.40 4.7 Intermittent Buzz Red
24DC 0.19 125.0 Continuous Silent Black/White

004 Specifications
For new or replacement installations in wood jambs. Use with locksets with individual deadbolts. Dead bolts cannot be released electrically. Use with locksets having up to 5/8” throw, based on 1/8” door gap.
Face Plate 6-1/4” x 1-3/8” -- Deadbolt Knockouts Top & Bottom 1-11/16” x 9/16” -- Mortise Backset 2-3/4” -- Cavity Depth 1/2” -- Cavity Width 9/16” -- Cavity Height 1-1/2”



Additional info

Width: 8.00
Height: 6.00
Depth: 6.00
